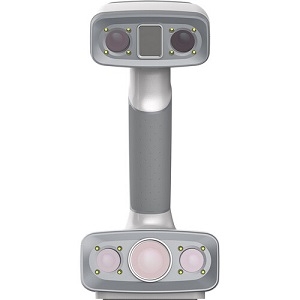

EinScan H
3D Scanner
by
Shining 3D
Note: Your Quotation Request will be directed to
Shining 3D.
The EinScan H from Shining 3D is a 3D Scanner with Scan Accuracy Up to 0.05 mm, Up to 0.6 mm, Stand off Distance 470 mm. More details for EinScan H can be seen below.
Product Specifications
Product Details
Part Number :
EinScan H
Manufacturer :
Shining 3D
General Parameter
Applications :
Aerospace, Automotive, Transportation
Depth of Field :
200-700 mm, 200-1500 mm
Dimension :
108 x 110 x 237 mm
Features :
Standard Scan, Body Scan
Interface :
USB
Laser Class :
LED light(eye-safe), CLASS 1 (eye-safe)
Light Source :
White Light LED, Infrared Light
Measuring Speed :
1,200,000 points/s, 20 FPS, 720,000 points/s, 20 FPS
Operating System :
Windows 10, 64 bit
Operation Temperature :
0 to 40 Degree C
Output File Formats :
.obj, .stl, .asc, .ply, .3mf
Scan Type :
Triangulation
Size of Object :
Small, Medium
Technology :
Structure Light Scanning
Volumetric Accuracy :
0.05+0.1mm/m
Weight :
703 g
Scan Accuracy :
Up to 0.05 mm, Up to 0.6 mm
Stand off Distance :
470 mm
